12wk-2: 순환신경망 (7)

순환신경망 minor topics (1)

강의영상

https://youtube.com/playlist?list=PLQqh36zP38-zzFVZVXR27PzztD_yCYqyJ

imports

import torch
import pandas as pd

import matplotlib.pyplot as plt

Define some funtions

def f(txt,mapping):
    return [mapping[key] for key in txt]
sig = torch.nn.Sigmoid()
soft = torch.nn.Softmax(dim=1)
tanh = torch.nn.Tanh()

순환신경망 표현력 비교실험 (1)

data: abcabC

txt = list('abcabC')*100
txt[:8]
txt_x = txt[:-1]
txt_y = txt[1:]

mapping = {'a':0,'b':1,'c':2,'C':3}
x= torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float()
y= torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float()

x = x.to("cuda:0")
y = y.to("cuda:0")

x.shape

torch.Size([599, 4])

실험

- 실험1

HIDDEN = 3

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        rnn = torch.nn.RNN(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(rnn.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, hT = rnn(x,_water)
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combind = torch.concat([hidden,yhat],axis=1)
        ax[i][j].matshow(combind.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment1: RNN with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

- 실험2

HIDDEN = 4

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        rnn = torch.nn.RNN(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(rnn.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, hT = rnn(x,_water)
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combind = torch.concat([hidden,yhat],axis=1)
        ax[i][j].matshow(combind.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment2: RNN with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

- 실험3

HIDDEN = 8

fig, ax = plt.subplots(5,5,figsize=(10,8))
for i in range(5):
    for j in range(5):
        rnn = torch.nn.RNN(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(rnn.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, hT = rnn(x,_water)
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combind = torch.concat([hidden,yhat],axis=1)
        ax[i][j].matshow(combind.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)

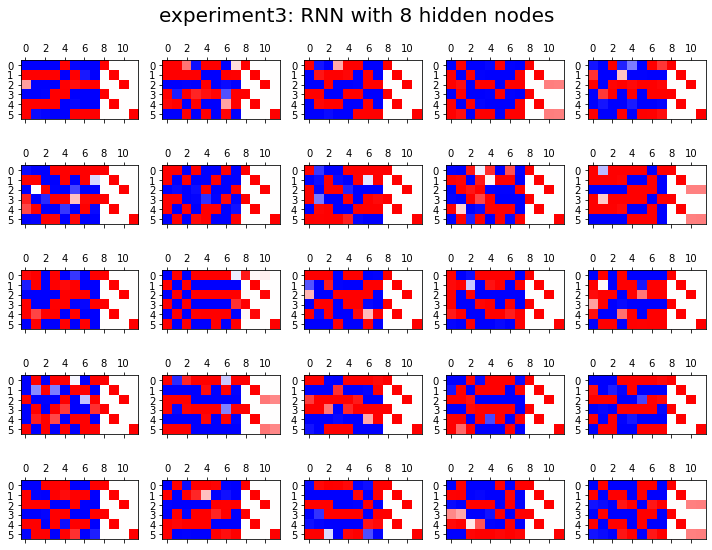

fig.suptitle("experiment3: RNN with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

결론

- 노드수가 많으면 학습에 유리함

순환신경망 표현력 비교실험 (2)

data: ab(c,C)

# torch.manual_seed(43052)
# txta = 'a'*50
# txtb = 'b'*50
# prob_upper = torch.bernoulli(torch.zeros(50)+0.5)
# txtc = list(map(lambda x: 'c' if x==1 else 'C', prob_upper))
# txt = ''.join([txta[i]+','+txtb[i]+','+txtc[i]+',' for i in range(50)]).split(',')[:-1]
# txt_x = txt[:-1]
# txt_y = txt[1:]
# pd.DataFrame({'txt_x':txt_x,'txt_y':txt_y}).to_csv("2022-11-25-ab(c,C).csv",index=False)

df= pd.read_csv("https://raw.githubusercontent.com/guebin/DL2022/main/posts/IV.%20RNN/2022-11-25-ab(c%2CC).csv")
df

	txt_x	txt_y
0	a	b
1	b	c
2	c	a
3	a	b
4	b	c
...	...	...
144	a	b
145	b	C
146	C	a
147	a	b
148	b	c

149 rows × 2 columns

mapping = {'a':0,'b':1,'c':2,'C':3}
x= torch.nn.functional.one_hot(torch.tensor(f(df.txt_x,mapping))).float()
y= torch.nn.functional.one_hot(torch.tensor(f(df.txt_y,mapping))).float()

x = x.to("cuda:0")
y = y.to("cuda:0")

실험

- 실험1

HIDDEN = 3

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        lstm = torch.nn.LSTM(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, (hT,cT) = lstm(x,(_water,_water))
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combinded = torch.concat([yhat,y],axis=1)
        ax[i][j].matshow(combinded.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)

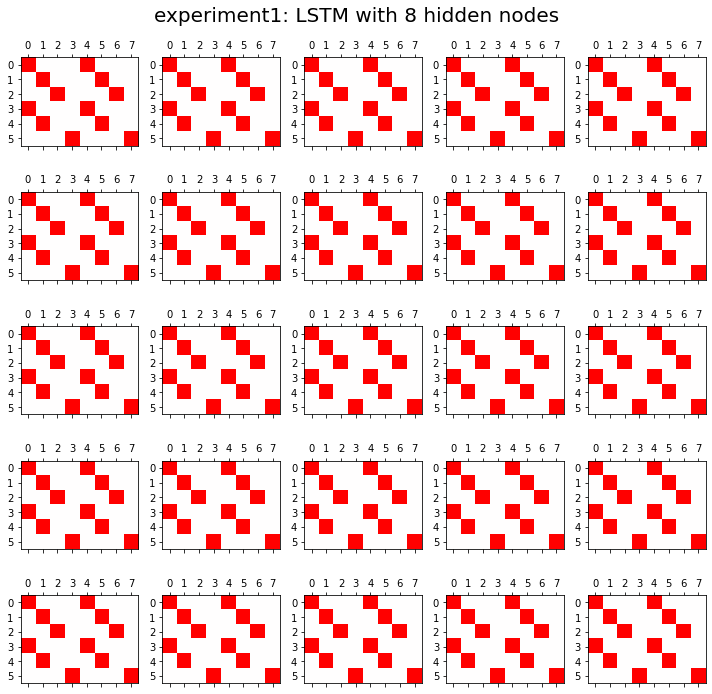

fig.suptitle("experiment1: LSTM with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

- 실험2

HIDDEN = 16

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        lstm = torch.nn.LSTM(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, (hT,cT) = lstm(x,(_water,_water))
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combinded = torch.concat([yhat,y],axis=1)
        ax[i][j].matshow(combinded.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment2: LSTM with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

결론

- 노드수가 너무 많으면 오버피팅 경향도 있음

문자열에서 단어로

data: human numbers 5

txt = (['one',',','two',',','three',',','four',',','five',',']*100)[:-1]

mapping = {',': 0, 'one': 1, 'two': 2, 'three': 3, 'four': 4, 'five': 5}

txt_x = txt[:-1]
txt_y = txt[1:]

x= torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float()
y= torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float()

x = x.to("cuda:0")
y = y.to("cuda:0")

torch를 이용한 learn

HIDDEN = 20

torch.manual_seed(43052)
lstm = torch.nn.LSTM(6,HIDDEN).to("cuda:0")
linr = torch.nn.Linear(HIDDEN,6).to("cuda:0")
loss_fn = torch.nn.CrossEntropyLoss()
optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)
_water = torch.zeros(1,HIDDEN).to("cuda:0")
for epoc in range(50):
    ## 1
    hidden, (hT,cT) = lstm(x,(_water,_water))
    output = linr(hidden)
    ## 2
    loss = loss_fn(output,y)
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

soft(output).data[-10:].to("cpu")

tensor([[9.9998e-01, 1.0322e-05, 4.6667e-07, 1.2710e-05, 6.3312e-08, 8.4611e-07],
        [6.4150e-07, 9.8424e-01, 6.0318e-06, 6.6175e-03, 1.0694e-06, 9.1385e-03],
        [9.9973e-01, 7.3071e-06, 6.8878e-06, 3.2753e-06, 1.6609e-05, 2.3431e-04],
        [3.5137e-07, 3.4126e-06, 9.9809e-01, 1.1728e-04, 1.1325e-03, 6.5370e-04],
        [1.0000e+00, 7.8201e-07, 2.4862e-07, 2.1471e-06, 1.4995e-07, 2.1554e-07],
        [1.0009e-06, 2.2841e-03, 6.4430e-04, 9.9682e-01, 2.0504e-07, 2.5537e-04],
        [9.9981e-01, 7.3639e-07, 1.2807e-07, 1.9391e-07, 1.8970e-04, 1.5000e-06],
        [3.9604e-05, 8.6161e-06, 1.5918e-03, 1.1244e-07, 9.9808e-01, 2.7556e-04],
        [9.9993e-01, 3.3252e-07, 9.5155e-06, 4.8129e-07, 2.7274e-05, 3.2102e-05],
        [8.0918e-07, 8.0716e-03, 5.9763e-04, 7.7044e-05, 6.8931e-05, 9.9118e-01]])

plt.matshow(soft(output).data[-10:].to("cpu"),cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7fa6f01486d0>

fastai를 이용한 learn

from fastai.text.all import *

ds1 = torch.utils.data.TensorDataset(x,y)
ds2 = torch.utils.data.TensorDataset(x,y) # dummy
dl1 = torch.utils.data.DataLoader(ds1,batch_size=998)
dl2 = torch.utils.data.DataLoader(ds2,batch_size=998) # dummy
dls = DataLoaders(dl1,dl2)

class MyLSTM(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.lstm = torch.nn.LSTM(6,HIDDEN)
        self.linr = torch.nn.Linear(HIDDEN,6)
    def forward(self,x):
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        hidden, (hT,cT)  = self.lstm(x,(_water,_water))
        output = self.linr(hidden)
        return output

net = MyLSTM()
loss_fn = torch.nn.CrossEntropyLoss()

lrnr = Learner(dls,net,loss_fn,lr=0.1)

lrnr.fit(50)

epoch	train_loss	valid_loss	time
0	1.722138	1.502271	00:00
1	1.611093	1.973368	00:00
2	1.734299	1.481888	00:00
3	1.669271	1.377668	00:00
4	1.608570	1.368541	00:00
5	1.566517	1.267919	00:00
6	1.521232	1.106543	00:00
7	1.465657	0.959904	00:00
8	1.404815	0.856123	00:00
9	1.344825	0.802936	00:00
10	1.290437	0.794831	00:00
11	1.244395	0.771966	00:00
12	1.203488	0.735865	00:00
13	1.165525	0.690032	00:00
14	1.129149	0.621654	00:00
15	1.092401	0.555875	00:00
16	1.055485	0.493046	00:00
17	1.018588	0.423167	00:00
18	0.981230	0.349703	00:00
19	0.943231	0.279531	00:00
20	0.904838	0.216544	00:00
21	0.866475	0.166756	00:00
22	0.828821	0.125583	00:00
23	0.792214	0.094763	00:00
24	0.757037	0.072662	00:00
25	0.723539	0.055544	00:00
26	0.691763	0.042442	00:00
27	0.661703	0.032804	00:00
28	0.633335	0.025908	00:00
29	0.606606	0.020872	00:00
30	0.581437	0.017020	00:00
31	0.557727	0.014002	00:00
32	0.535379	0.011625	00:00
33	0.514297	0.009755	00:00
34	0.494391	0.008293	00:00
35	0.475579	0.007180	00:00
36	0.457784	0.006386	00:00
37	0.440938	0.005807	00:00
38	0.424976	0.005199	00:00
39	0.409830	0.004525	00:00
40	0.395437	0.003926	00:00
41	0.381747	0.003398	00:00
42	0.368712	0.002977	00:00
43	0.356291	0.002673	00:00
44	0.344447	0.002432	00:00
45	0.333144	0.002230	00:00
46	0.322349	0.002058	00:00
47	0.312030	0.001911	00:00
48	0.302160	0.001785	00:00
49	0.292712	0.001678	00:00

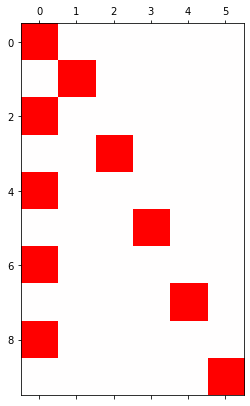

plt.matshow(soft(lrnr.model(x)).data.to("cpu")[-10:],cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7fa6f00bf4d0>

숙제

없음
